True diversity wireless microphone< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print

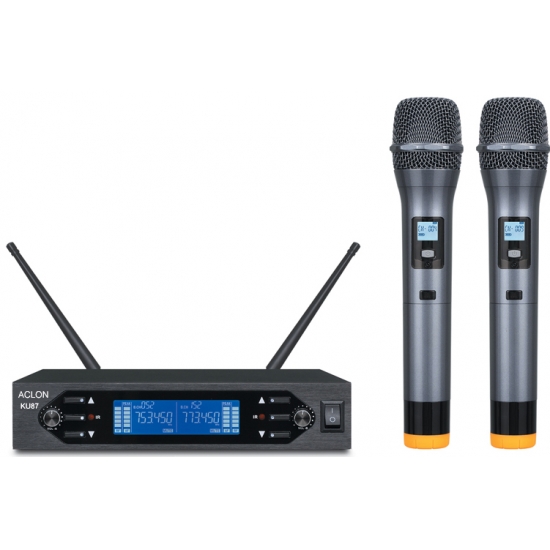

  • KTV wireless microphone

    KU87

    Transmitter Specifications:

    1. Frequency range: UHF 520-930MHz

    2. Frequency stability: 10ppm

    3. Transmit power: 10mV

    4. Launch distance: 100 (m)

    5. Harmonic suppression: 65db above

    6.Modulation method: FM

    7. The maximum modulation: 75K

    8. Working voltage: 3V

    9.Working current: 120mA

    10. Function display mode: LCD



    Receiver specifications:

    1. Frequency: 520-930MHZ

    2. Frequency stability: 10ppm

    3. Sensitivity: 13dbuv

    4. Linkage suppression: 65db

    5. Image frequency suppression: 75db

    6.Audio output: 200mV

    7. Output impedance: XLR interface: 200 Europe 1/4 connector: 1K Europe

    8.Signal to noise ratio: 100dB

    9. Distortion: <0.1%

    10. Frequency response: 50Hz-15KHz

    11. Function display mode: LCD

    12. Power Supply: DC-12-18V
