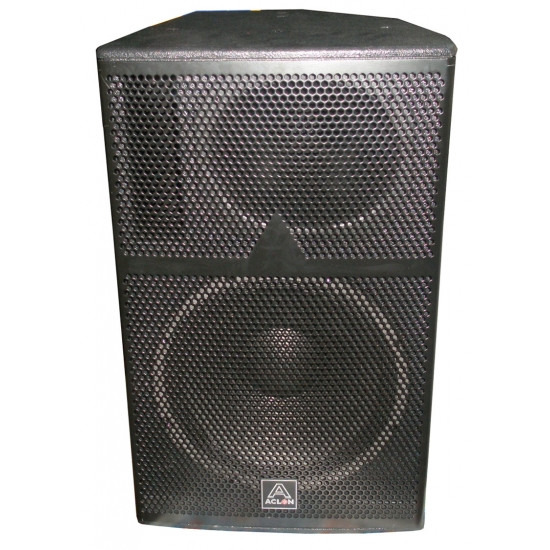

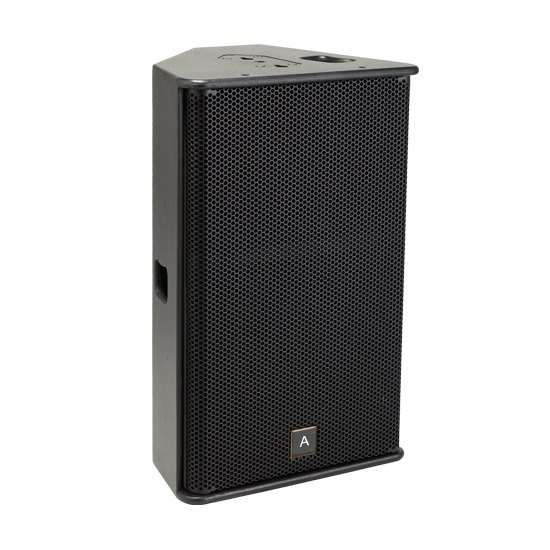

PS15 15" 500W full range loudspeaker< back

- Specifications
- Feature
- Application
- Download
-
<
System Type 2 way full range passive speaker system Subwoofer Products Model: PS8+ PS10+ PS12+ PS15+ PSL1200 LF driver unit Inch(aluminium)
Voice Coil Diameter
1 x 8" (φ50mm) 1 x 10" (φ65mm) 1 x 12" (φ65mm) 1 x 15" (φ75mm) 1 x 18" (φ100mm) Magnet type size ferrite ,φ145 mm ferrite,φ156 mm ferrite,φ170mm ferrite ,φ190mm ferrite,φ220mm HF-Compression drivers(Titanium ) 1 x 1.37"(34mm titanium ) 1 x 1.7"(44mm) 1 x 3" (72mmium) / Exit throat Size
1"(25mm)throat 1"(25mm)throat 1.5"(38mm)throat / Dispersion(H * V) 50° * 100° Rotatable Horn, 4 Positions 50° *100° Rotatable Horn, 4 Positions / System Performance Section Rated Power(RMS) 200W 300W 400W 500W 600W Programe Power /Peak Power 400W /600W 600W /900W 800W /1200W 1000W 1500W 1200 W/1800W Sensitivity (SPL 1m-1W)Nominal 96dB 99 dB 99 dB 100dB 100dB Sensitivity (SPL1m-1W)Wideband 94dB 97dB 97dB 98dB 99dB Nominal Peak SPL @ 1m RMS 120 to125dB 121 to 125dB 123 to127dB 125 to129dB 129 to 132dB Frequency Response( ±3dB) 69Hz - 19KHz 65Hz - 19KHz 60Hz - 19KHz 50Hz - 19KHz 30Hz -220Hz Usable Range at-6dB 62Hz - 20KHz 58Hz - 20KHz 55Hz - 20KHz 46Hz - 20 KHz 28Hz - 250Hz Crossover Frequency point 2.1 KHz Passive 2.0 KHz Passive 1.9 KHz Passive / Nominal Impedance 8 Ohms 8 Ohms Harmonic distortion ≦0.05% Appearance Section Input output Connector terminals 2 *NL4MP Speakon, ( Link&Out Pin±1=±1 , Input Pin±2= ±2 ) Outlook Colours Black or White for choosen Protective Grille Perforated steel grille Appearance Birch Ply finished with textured, polyurethane black coating Enclosure material Baltic Birch 15 mm Multi-laminate Plywood finished Rigging -Flyings Handle 2 integral to cabinet handle Fittings Installation M8 threaded insert , standard spacing, anchor point for flying track Stand fittings Built in Stand Fitting, 35mm (1"3/8) mounting pole socket Dimensions Section Dimension W*H*D (mm) 251×405×220 278×510×315 380×570×345 435×670×370 530x 790 x 600 Dimension W*H*D (inch) 9.8x 16 x 8.6 12.5x20 x 10.8 15x22.5x13.6 17.2x26.4x14.5 20.9 x 31.1x 23.6 Shipping Dimensions (mm) 310x465x280 338 x 570x 380 440x630x405 495x630x430 590x 850 x 660 Net Weight (1pcs) 10kg (22lbs) 16 kg (35lbs) 20kg (44 lbs) 30 kg (66lbs) 48 kg (105.6 lbs) Shipping Weight (1pcs) Pack 2 RS8=24 kg 19 kg (41 lbs) 23 kg (50 lbs) 33kg (73 lbs) 52 kg (114.5 lbs) -
KEY FEATURES:
1) Versatility compact two-way passive system,powerful& lightweight, Attractive and professional appearance.
2) 8 .10.12.15 inch, 2-way higher efficiency - weather-resistant,multipurpose enclosure, powder coated steel grill.
3) High Power capability with dynamic protection-rated at 150-1000 watts (IEC) with power protection circuitry to prevent overloads.
4) Advanced Directivity Rotatable Waveguide -(50° x 100°),deliver accurately focused sound, enclosure's any mounted orientation.
5) Electronic protection on high frequencies- internal crossover,which divides frequencies to each transducer with minimum losses
6) Modern Style, Weather Resistant Enclosure and Components - ideal for a wide range of applications.

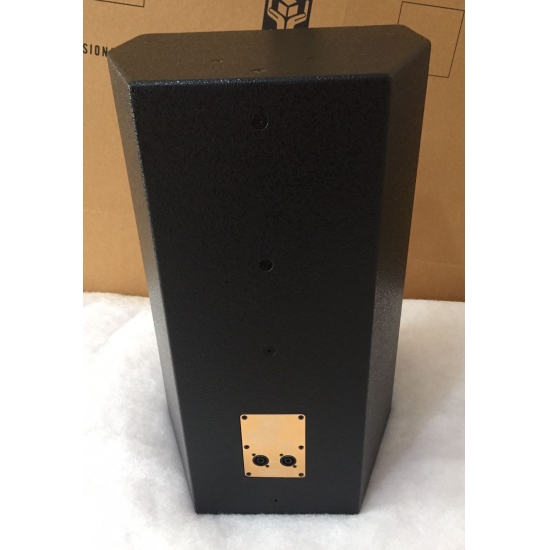

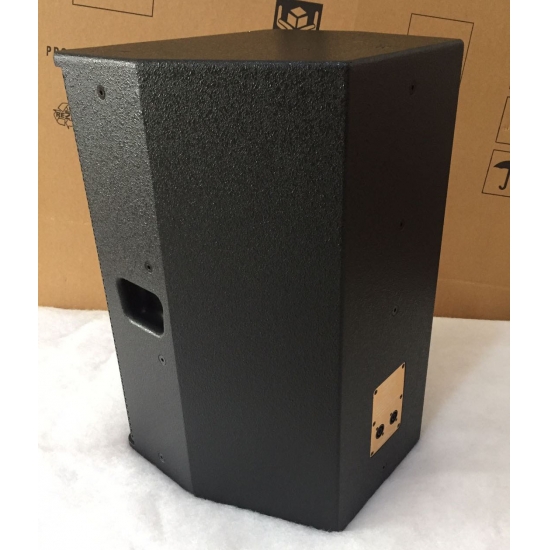

7) Easy and simple Rigging ,Two Parallel Speakon Connectors - for quick, secure audio input setup.
8) 35 mm pole sockets and M 8 threaded insert & flying track point- for versatile mounting and flying options .
-
. PA install and Unobtrusive powerful stage monitor performances .
. Theater.houses of worship.broadcast.Disco etc.
. The night club sound reinforcement systems.
. Audio & video presentations sound systems.
. Fixed Installations system and Live sound reinforcement
-
