Professional wireless UHF microphone S66< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • True diversity wireless microphone

    S66

    System Index:

    1. Frequency range: UHF 520-930MHz

    2. Modulation: Broadband FM

    3. Adjustable range: 50MHz

    4. Number of channels: 2x100

    5. Channel spacing: 250KHz

    6. Frequency stability: ± 0.005% or less

    7. Dynamic range: 100dB

    8. The biggest deviation: ± 45KHz

    9. Audio Response: 80Hz-18KHz (± 3dB)

    10. Integrated signal to noise ratio:> 105dB

    11. Comprehensive distortion: ≤ 0.5%

    12. Operating temperature: -10 ℃ ~ 50 ℃

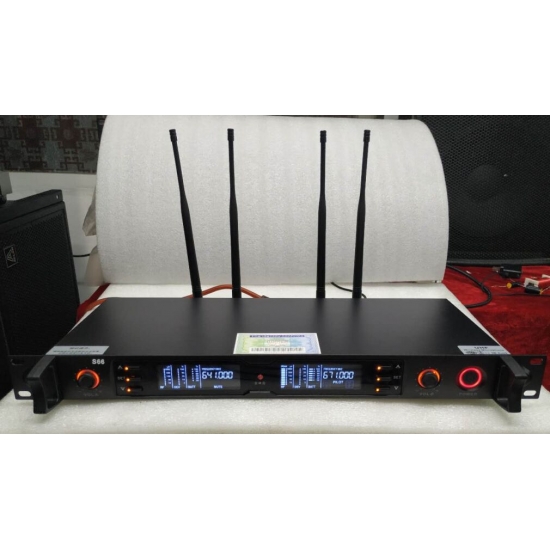

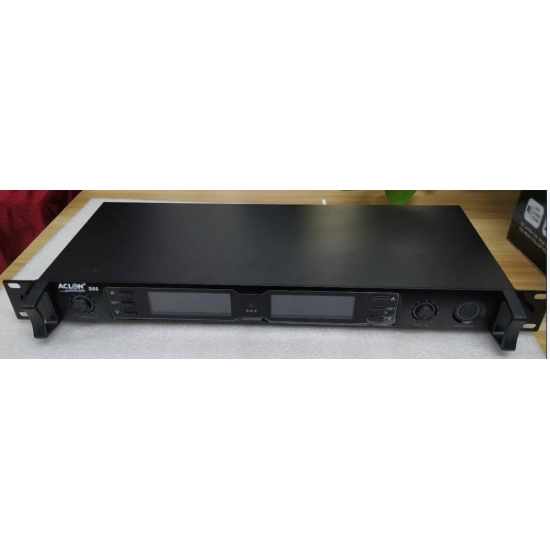

    Receiver specifications:

    1. Receiver mode: the second frequency superheterodyne

    2. IF frequency: the first IF: 110MHz, the second IF 10.7MHz

    3. Wireless interface: BNC / 50

    4. Sensitivity: 12dBμV (80dBS / N)

    5. Sensitivity range: 12-32dBμV

    6.Spurious suppression: ≥ 75dB

    7. Maximum output level: + 10dBV

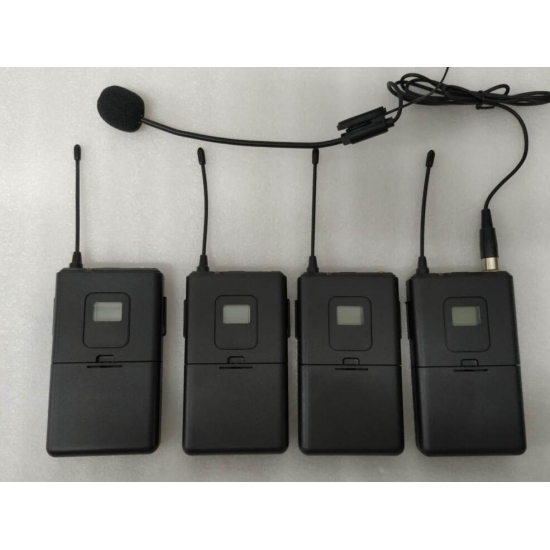

    Transmitter Specifications:

    1. Antenna program: Pocket transmitter with a 1/4-wavelength whip antenna, hand-held microphone built-in spiral antenna

    2. Output power: high frequency 30Mw, low frequency 3Mw

    3. Spurious suppression: -60dB

    4. Power supply: two AA DC 1.5V battery 5. Operating time: more than 10 hours at 30mW, more than 15 hours at 3mW



  • True diversity wireless microphone

    S66

    System Index:

    1. Frequency range: UHF 520-930MHz

    2. Modulation: Broadband FM

    3. Adjustable range: 50MHz

    4. Number of channels: 2x100

    5. Channel spacing: 250KHz

    6. Frequency stability: ± 0.005% or less

    7. Dynamic range: 100dB

    8. The biggest deviation: ± 45KHz

    9. Audio Response: 80Hz-18KHz (± 3dB)

    10. Integrated signal to noise ratio:> 105dB

    11. Comprehensive distortion: ≤ 0.5%

    12. Operating temperature: -10 ℃ ~ 50 ℃

Related Tags : KTV wireless microphone UHF microphone True diversity wireless microphone
