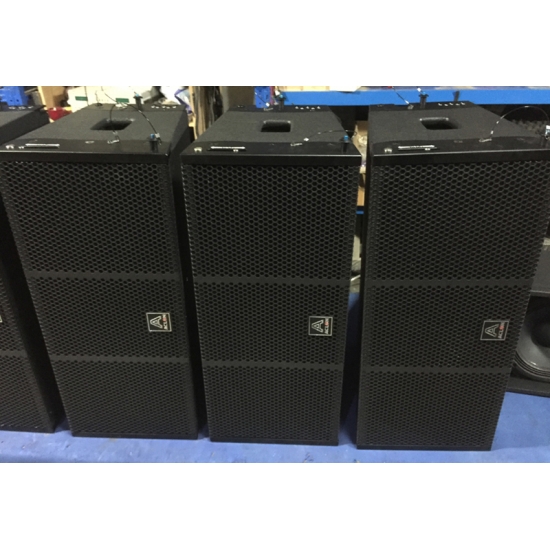

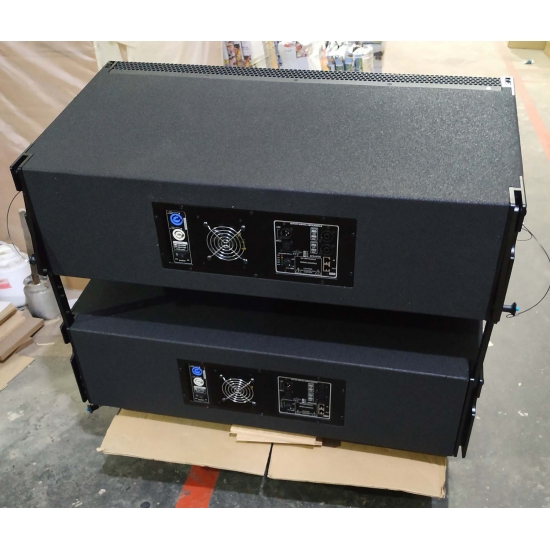

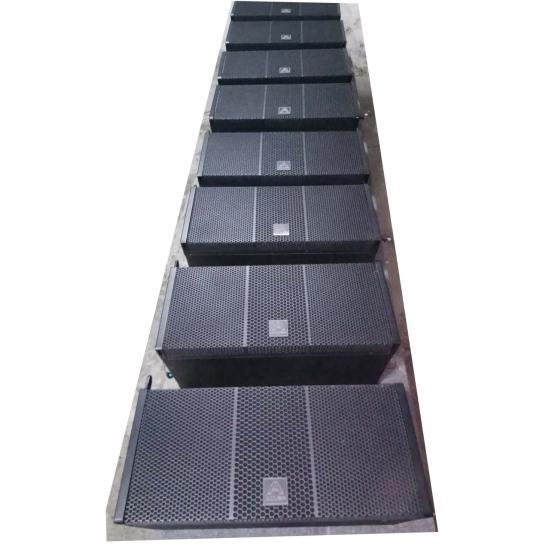

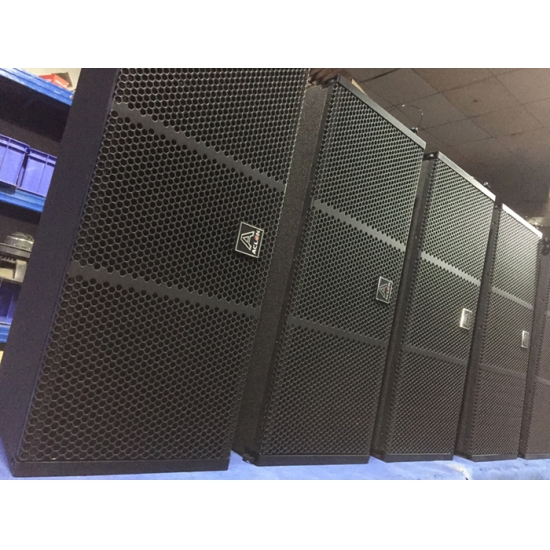

LAM208A dual 8inch 700W active top line array speaker< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • LAT-DSP is a 2-way DSP-controlled active mid-large line array speaker, it is widely used in fixed-venue and full size events,such as church, wedding, auditorium, stadium, live concert etc.

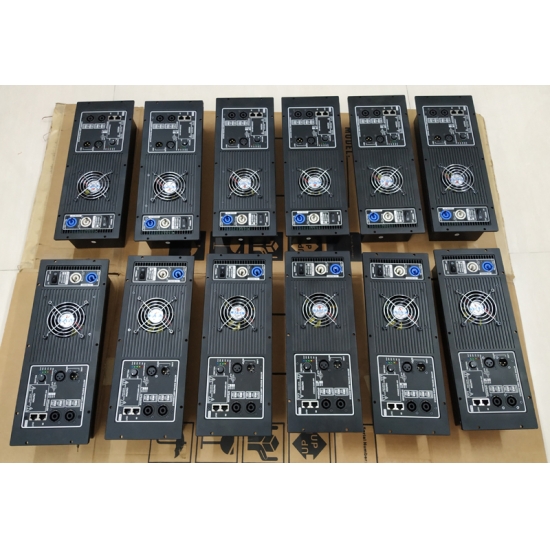

    Adopted high quality woofer and neodymium driver, mounted ACLON customized dsp amplifier module in cabinet, high reliable, high performance.



    Feature:

    1. Two-way full range DSP active system

    2. Wave guide horn

    3. Customized driver HF, LF from USA brand

    4. Rock solid birch plywood CNC made cabinet

    5. Impedance: 4ohm

    6. Fast installation rigging system

    7. Comprehensive accessories suitable for different applications.



    Products Model:    LAT206A   LAT208A   LAT210A   LAT212A   LAT118SA   LAT218SA
    LF driver unit Inch 2X 6.5"  2 x 8"   2 x 10"   2 x 12"    1 x 18"    2 x 18"
    HF drivers  1 x 1.7"   1 x 1.7"   1 x 3"   1 x 3"    /   /

    Dispersion Angle

    H90°× 14°   H90°x 7°   H90°x 7°   H90°x 7°   /   /
    RMS / Program 350W/700W  700W /1400W    800W /1600W    1000W /2000W    800W/1600W   2000W/3000W
    Peak power 1050W  2100W   2400W   3000W   2400W   6000W
    Nominal MAX /Peak SPL 123dB  126dB   132dB   134dB   129dB    132dB
    Frequency Response( ±3dB) 50Hz-20 KHz  45Hz - 20KHz   42Hz - 20KHz    42Hz - 20KHz    25Hz - 220Hz    35Hz - 220Hz
    Crossover Frequency point 1.9  KHz   2.0 KHz    1.9  KHz    1.9  KHz    150 Hz    150 Hz
    Nominal Impedance  4 Ohms
    Input  output inside amps  2* XLR- INPUT /LINK
    LED indicators   Active / Signal / Clip  / Protect
    RS-485 / Network  RS-485 / Network, USB  Connector to Coumputer,For DSP function operation
    Protections   DC protect.High temperature .Short circuit protect, Soft startup protect, overload protect
    Power amplifier Circuitry    Class D
    Dimension (mm) 245×322×595mm  610*340*280   735*390*335   916*460*380   610*520*500   916*610*500
    Net Weight   (1pcs) 18kg  27kg     35 kg     40kg     49kg    64kg

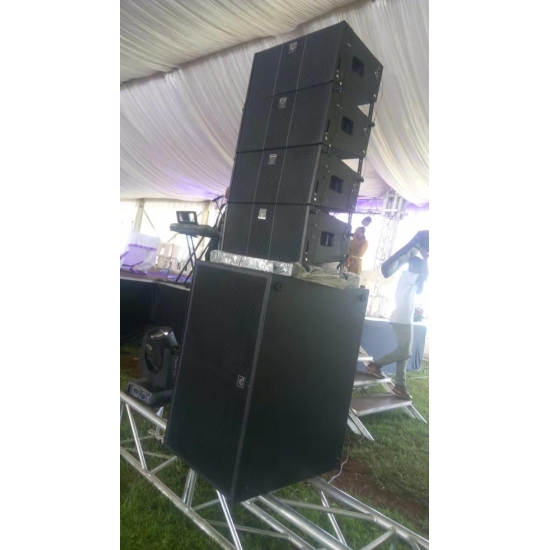

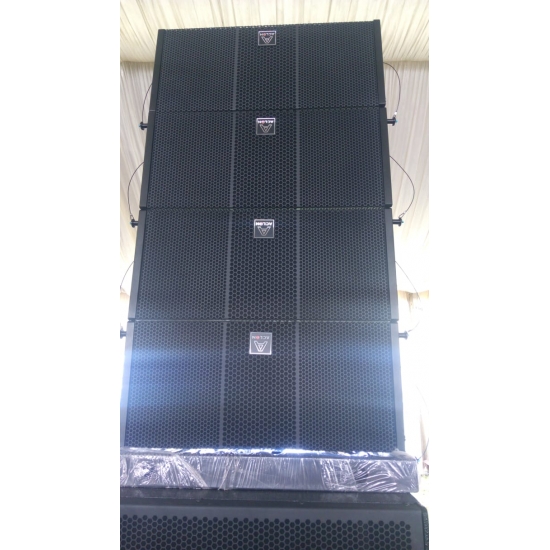

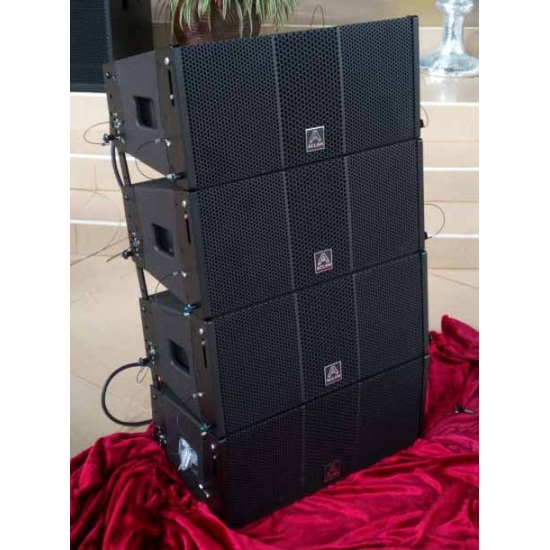

  • Application:

    Theater places expand sound systems.

    Touring FOH system

    Audio & video presentations sound system

    Mobile or permanently live concert reinforcement
