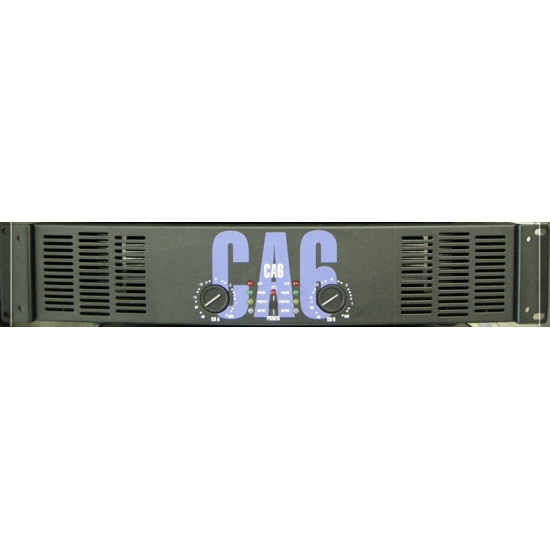

CA6 400W reliability power amplifier< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • <
    Product Model: CA 6 CA 9 CA 12 CA 16 CA 18 CA 20 CA 22
    Rack mounting (high) steel panel  2U 2U 2U 3U 3U 3U 3U
    Rated Power                            8ohm  stereo 2x400 W 2x600W 2x700W 2x900W 2x1100W 2x1300W 2x1500 W
    (1KHzTHD+N=0.1) 4ohm  stereo 2x600 W 2x900 W 2x1050 W 2x1350 W 2x1650W 2x1950W 2x2450 W

    2ohm  stereo 2x800 W 2x1200 W 2x1400 W 2x1700 W 2x2100W 2x2500W 2x2900 W
    Mono Bridge 8ohm  bridge 1200 W 1800W 2100 W 2600 W 3300W 3900W 4200W

    4ohm  bridge 1600W 2200W 2800W 3200W 4200 W 5000 W 5600 W
    Protection DC protect.Current inrush protect turn-on/off transient, Short circuit protectHigh temperature protect
    Protection Soft startup protectInput over load protect (Limiter) .Output over load protect.ultrasonic input. ACL.IGM.
    Crossover  By  Pass   20 Hz-22 KHz   (-3 dB)

    High/Low Pass  High Pass:50 Hz-22 KHz ,  Low Pass:20 Hz-120 Hz
    Controls Front Panel Power switch,Ch1.Ch2 Volume Knob,Led Indicators.

    Rear Panel Crossover switch , sensitivity switch, operation mode switch.
    LED  indicators
                           Protection-Red.Clip-Yellow.Signal-Green,Active-Green.
    System Performance Section
    Frequency response  1W   8ohm  stereo 20 Hz-20 KHz    (±0.5dB)
    Sensitivity  8ohm  stereo&1KHz 0.775V1.0V1.44V± 5%)
    Mode switch
    StereoBridgeParallel
    Cooling system front-to-back air flow two efficient fans with variable speed
    Connectors Input / Link connectors Female and male XLR
    (Each channel) Output connectors Speakon & Binding posts
    Input impedance(ohm) Balanced/Unbalanced 20K ohm , 10K ohm
    Input CMRR (1kHz)
     > -65dB
    Hum and Noise
     > -105dB
    Crosstalk   20Hz~20KHz at8ohm 70dB
    S/N  ratio  8Ω  Rated Power  105dB
    Phase response 1W&8ohm 20Hz~20KHz within ±5°
    Slew  rate
    60 V/us
    Intermodulation distortion
    0.10%
    Total harmonic distortion  8Ω 20Hz~20KHz  0.05%
    Power supply US & Canada /Europe /Asia 110V/60Hz,   230V/50Hz,  220V/50Hz.( factory configured )
    Damping factor  1KHz&8ohm 500 550 550 600 700 800 950
    Output Circuitry   TOSHIBA  Transistor Class AB Class H Class H Class H Class H Class H Class H
    Dimension and shipping  section
    Dimension (W×D×H)     Chassis /mm 2U: 483x450x88mm 3U: 483x460x132mm
    Packing dimension        Unit /mm  590x590x140 mm 630x590x180mm
    Net   Weight  (kg)
    17 19 22 28 35 38 39
    Gross Weight (kg)
    19 22 24 31 37 40 41
  • KEY  FEATURES:
    > Professional elegant coated steel panel design appearanceand gauge steel chassis and exquisite craftwork.
    > Six models from 500W to 1300W RMS at 8 ohms per channel, It can work very well at 2 ohm stereo.
    > 2U to 3U rack mounting and Using USA  advanced Technic class H Amplifying circuitry. TOSHIBA Transistor
    > Excellent sonic performance, Advanced & traditional protection circuits and efficient cooling system.
    > Powerful Low frequency,mid high frequency of clear transparency and smooth softness. represent dynamic power.
    > Independent volume control for each channel,  High slew rate and damping factor
    > Mode selector switch for stereo, parallel and bridged operation,XLR,Speakon&Binding posts outputs
    > Mode switch,sensitivity switch, Adjustable Crossover by pass.high pass.low pass.
    > Soft start :gradually increases gain to the knob-settings when the amplifier is turn on

    > It is design provides economical access to the premium sound quality and reliability.



    APPLICATIONS:
    It is middle-high class amplifier designed for Professional power-handling capabilities and low-end response make for installations
    and touring applications that demand the finest audio quality. It aims at real professional sound market, Extremely high quality-price ratio.
    Inside crossover,by pass for full range, low-pass for pure super bass while you need, and hi-pass for pure satellite.
    It is a good choice for the project which has a tight budget.can be used for large performance, big disco, nightclub, stadium, cinema
    Now it has enjoyed good market all over the world, especially in USA, European & Asia, such as Germany, France, Belgium,Spain .

  • . Professional performance, stadium, opera house, big disco etc.
    . Touring applications and Theater places expand sound systems.
    . The night club sound  reinforcement systems.
    . Audio & video presentations sound systems.
    . Fixed Installations system and Live sound reinforcement
