Class
Model
Description
Mix series
MIX62C
6 mono channel mixer
MIX82C
8 mono channel mixer
MIX122C
12 mono channel mixer
MIX162C
16 mono channel mixer
MIX242C
24 mono channel mixer
MIX24C
24 mono channel mixer
MIX32C
32 mono channel mixer
Powered mixer
MIX650A
6 mono channel,one MP3 stereo channel,dual 7 band equalization,
16 deley effects 2*180W/4OHM
MIX850A
8 mono channel,one MP3 stereo channel,dual 7 band equalization,
16 deley effects 2*180W/4OHM
MIX1250A
12 mono channel,one MP3 stereo channel,dual 7 band equalization,
16 deley effects 2*180W/4OHM
MIX1650A
16 mono channel,one MP3 stereo channel,dual 7 band equalization,
16 deley effects 2*180W/4OHM
-
Feature:

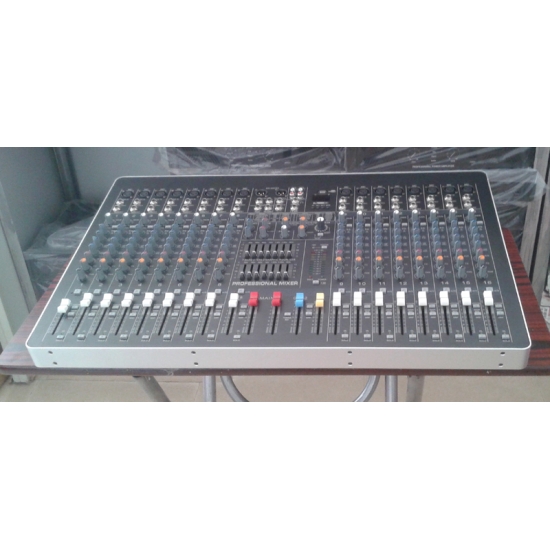

Professional compact mixer with USB I/O
.Bulit in 24bit digital effects processor
.2 Bus outputs design
.Precision 7-band graphic EQ for tuning Mains or Monitors
.60 mm long-wearing logarithmic-taper faders
Specification:
Maximum levels Mic Input:30 dBu
Line Input:21 dBu All other input: 22 dBu
Mixer Rated Output Main outs: +4 dBu
All other outs: +4 dBu Maximum output: 22 dBuFrequency response
Mic input to main output +0, -1 dB,<10Hz to 80kHz +0,-3 dB,<10Hz to 120kHzConnection Impedance Mic inputs:2k ohms Line inputs: >10k ohms
Outputs: >100 ohms EQ(each band): ±15dB Mono Channel EQ
High:12kHz High mid: 2.5kHz Low mid: 400Hz Low: 80Hz Stereo Channel
Low:80 Hz High: 12kHz
