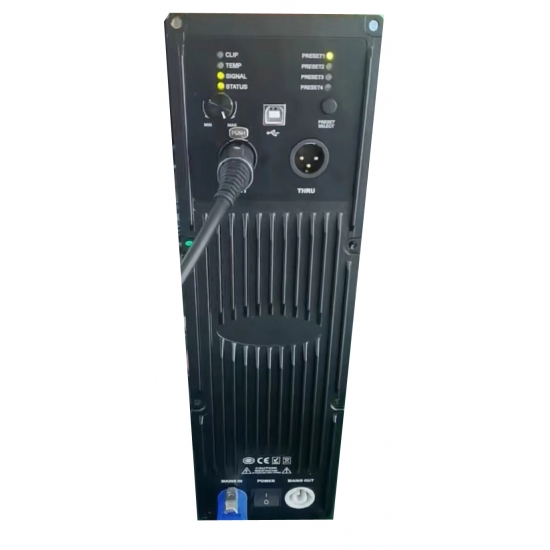

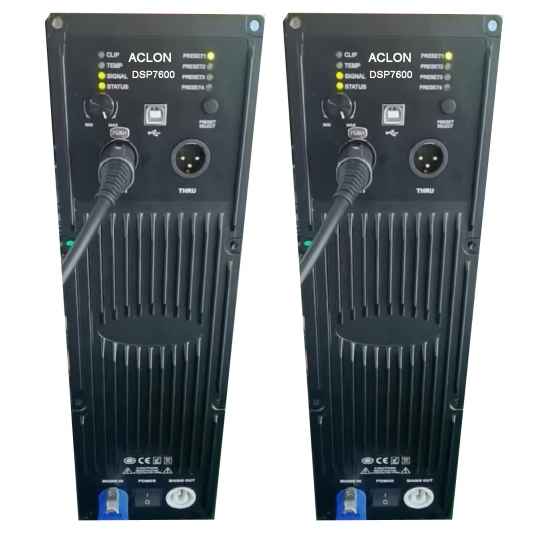

DSP7600 2X600W Full range line array power Amplifier module< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • Product Description


    Welcome to ACLON audio factoryWe are your one stop source for all of your Sound, Staging and Production needs. Whether you are looking to wholesale purchase or are looking for full concert production services, ACLON is here for you!

    ACLON DSP series is designed to match pro audio system self powered.

    its flexible output power is available for different cabinet: 2 ways active speakers,3 ways line arrays, subwoofer, column box etc.


    ACLON---DSP7600 Digital amplifier module specification

    DSP7600 amplifier modules, suit for 2-way speaker, such as 8", 10", 12", 15".

    1. Global power supply 100V-264V

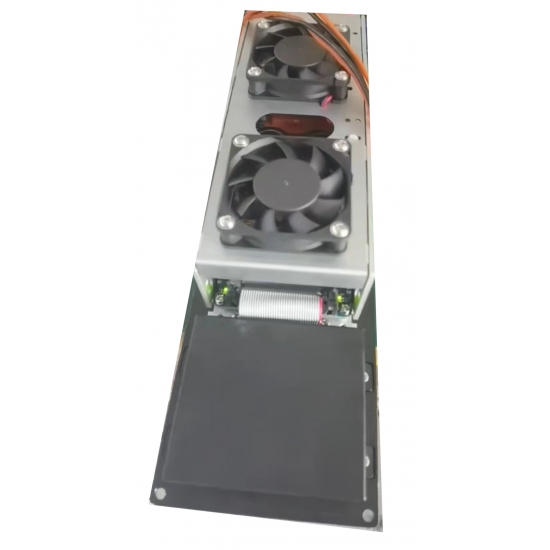

    2.Advanced class D circuit, inside have aluminum heatsink, better cooling system,

    3. Use high quality DSP board, more stable and reliable and durable performance.

    4. 1 input 2 output 24 bit @48kHz DSP

    5. Input equalizer: 5 parameter: Peak, high/low frame, all pass, band pass, band Stop, high/low pass

    6. Output equalizer: IIR fillter:  Peak, high/low frame, all pass, band pass, band Stop, high/low pass

    7. Crossover fillter: Butterworth,Linkwitz-Riley,Bessel,6dB/oct to 48dB/oct                    8. Limiter: peak limiter, RMS limiter, frequency skewing limiter, clipper limiter, temperature limiter

    9. Delay: 340 ms input delay (1in),10 ms output delay per channel


    Model

    DSP7600

    Output Power

    2X600W

    Output Power

    2X900W

    Output Circuit  LF

    Class D

    Input impedance

    10kΩ balanced

    Frequency response

    20Hz-20kHz.(+/- 0.5dB) @1W,8Ω

    THD+N

    < 0.09% from 0.1W to half power (typically <0.05%)

    SLEW RATE

    50V/μs@8Ω, input filter bypassed

    S/N RATE

    >115dB(20Hz-20kHz, A weighted)

    DAMPING FACTOR

    >500@100Hz

    Input sensitivity

    1.2V/+4dBu

    GAIN

    35dB

    PROTECTION

    DC, short circuit, over load, clip limit, over heat,

    POWER SUPPLY

    AC 100-240V±10%,50-60Hz

    DIMENSION (mm)

    370*155*80mm

    N.WKG

    3.8 kg


    Build in DSP active module, lightweight, high reliability, work stable.

    DSP is build with 30 different presets. Users can choose the presets according to their needs via PC.

  • 8" line array speaker

    10" line array speaker

    12" line array speaker



    8" stage monitor speaker

    10" stage monitor speaker

    12" stage monitor speaker

    15" stage monitor speaker

  • DSP4500 amplifier module software

Related Tags : DSP control module active speaker lightweight amplifier module active line array DSP module
